TEST-CASES casu
Click the picture to download the input data.
Extract the files from the compressed tar-archives with >tar xvfz kanal.taz.

Settling sediments
erosi erosi erosion of a settling sediment
9.5.2 Erosion

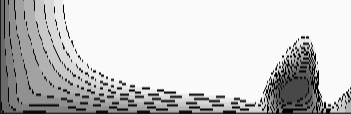

deposi deposi deposition of a settling sediment
9.5.3 Deposition
rouse rouse diffusion of a settling sediment
9.5.1 Diffusion und Sinken
Stably density stratified fluids
strash strash plain free shear layer (vertical mixing) in stratified fluid
9.4.2 Ebene Scherschicht
loglinlaw loglinlaw stably stratified wall boundary layer
9.4.3 Wandgrenzschicht
isoconst isoconst decay of isotropic turbulence in stratified fluid
9.4.1 Abklingende isotrope Turbulenz
K-ε turbulence model
iso iso decay of isotropic turbulence
9.3.1 Abklingende isotrope Turbulenz
isocon isocon convection of decaying isotropic turbulence
9.3.1 Abklingende isotrope Turbulenz
oszi oszi oszillating grid tank test,
diffusion of decaying isotropic turbulence.
9.3.2 Oscillating-Grid-Tank
loglaw loglaw log-law layer, constant shear
9.3.3 Logarithmisches Wandgesetz
hofresh hofresh plain free shear layer (horizontal mixing)
9.3.4 Ebene Scherschicht
fresh fresh plain free shear layer (vertical mixing)
9.3.4 Ebene Scherschicht
Basic model
kanal kanal
straight open channel
testing non-orthogonal elements
9.2.1 Gerader Kanal

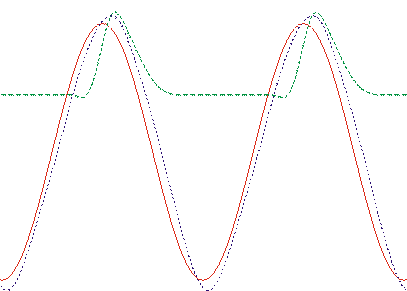

bucht bucht tide in a schematic bay with large intertidal flats
9.2.2 Tide in einer Bucht
staup staup stagnation point, potential theory
9.2.3 Potential-Staupunktströmung
wandver wandver laminar wall boundary layer (vertical)
9.2.4 Laminare Grenzschicht
wandh wandh laminar wall boundary layer (horizontal)
9.2.4 Laminare Grenzschicht
qd qd A concentration, produced by a constant source,
is transported by diffusion into the ground.
9.2.5 Diffusion von Konzentrationen
rr rr solid body rotation, regular mesh
9.2.6 Starrkörperrotation
ru ru solid body rotation, irregular mesh
9.2.6 Starrkörperrotation
rinnkon rinnkon convection of concentrations and turbulence quantities
9.2.7 Konvektiver Transport
